Gearbox Case Boring Processing Case

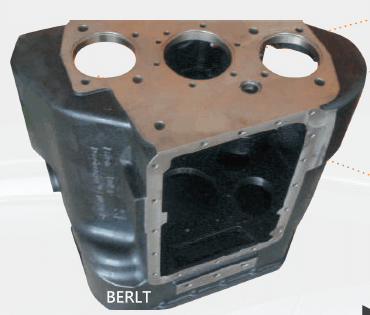

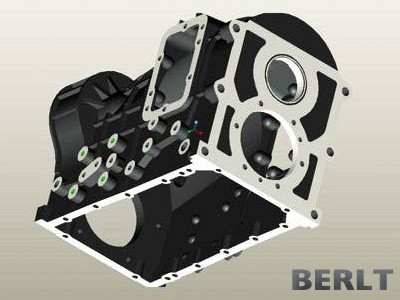

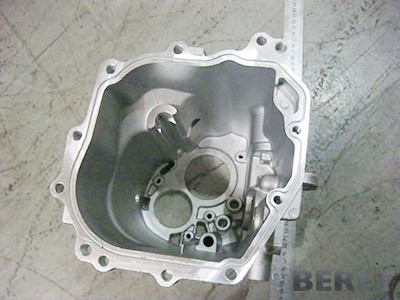

The gearbox housing is one of the important parts of a car. It assembles parts such as shafts, sleeves and gears to keep them in the correct position. Therefore, the assembly accuracy of these parts and box components and the performance and life of the machine after assembly are largely determined by the processing quality of the box itself.

Gray cast iron is often used as the gearbox material, because gray cast iron has good wear resistance, machinability, and low cost. Cast steel parts can also be used. For the machining of cast iron gearbox housings with slag inclusions and pores, traditional machining methods are difficult to achieve in order to fully meet the processing characteristics of the gearbox housing. In order to reduce the time for tool setting and tool change, Batch processing efficiency. Multi-blade indexable CBN inserts (multi-tooth milling cutters) can be preferred when processing the gearbox housing, which is convenient for loading and unloading. One blade can process 70-100 pieces, and another blade can be replaced after the cutting edge is worn. It can improve the machining efficiency by 50-70%. When processing the hole system of a small transmission case, it is often performed on a universal milling machine such as a vertical milling machine and a horizontal milling machine. The hole processing is relatively difficult.

A T-type (TCGW series) CBN insert developed by Berlt company is specially used for boring. The CBN boring insert can guarantee the required finish, dimensional accuracy and geometric accuracy. The car-replacement grinding process is widely used in the mass production of heavy-duty automobile transmissions, which solves the traditional grinding process and has significant production benefits. In addition, the generated chips are easy to recycle, which reflects the green and environmentally friendly processing technology.


CBN solid composite boring gearbox case

Tool manufacturers

Foreign ceramics

Zhengzhou Berlt

Workpiece name and material

Gearbox case gray cast iron

Processing part

Box hole

Tool model and material

TCMW160408

TCGW160408-F  BT9000

Cuttingdepth(mm)

0.2

Line Speed(m/min)Le(m/min)

1000

Feed rate(mm/r)

0.12-0.15

Tool life

20

80




Business case

a domestic transmission factory

Machine tool

vertical machining center

Workpiece name

Transmission case

Processing part

hole in the box

Workpiece material

gray cast iron

Hardness

HB200-300

Processing procedure

fine boring
