WNGN Series Solid CBN Inserts
Processed Material: Hardened Steel, high strength cast iron,Powder Metallurgy,Gray Cast Iron.
Processing Methods: Finishing, semi-finishing and roughing.

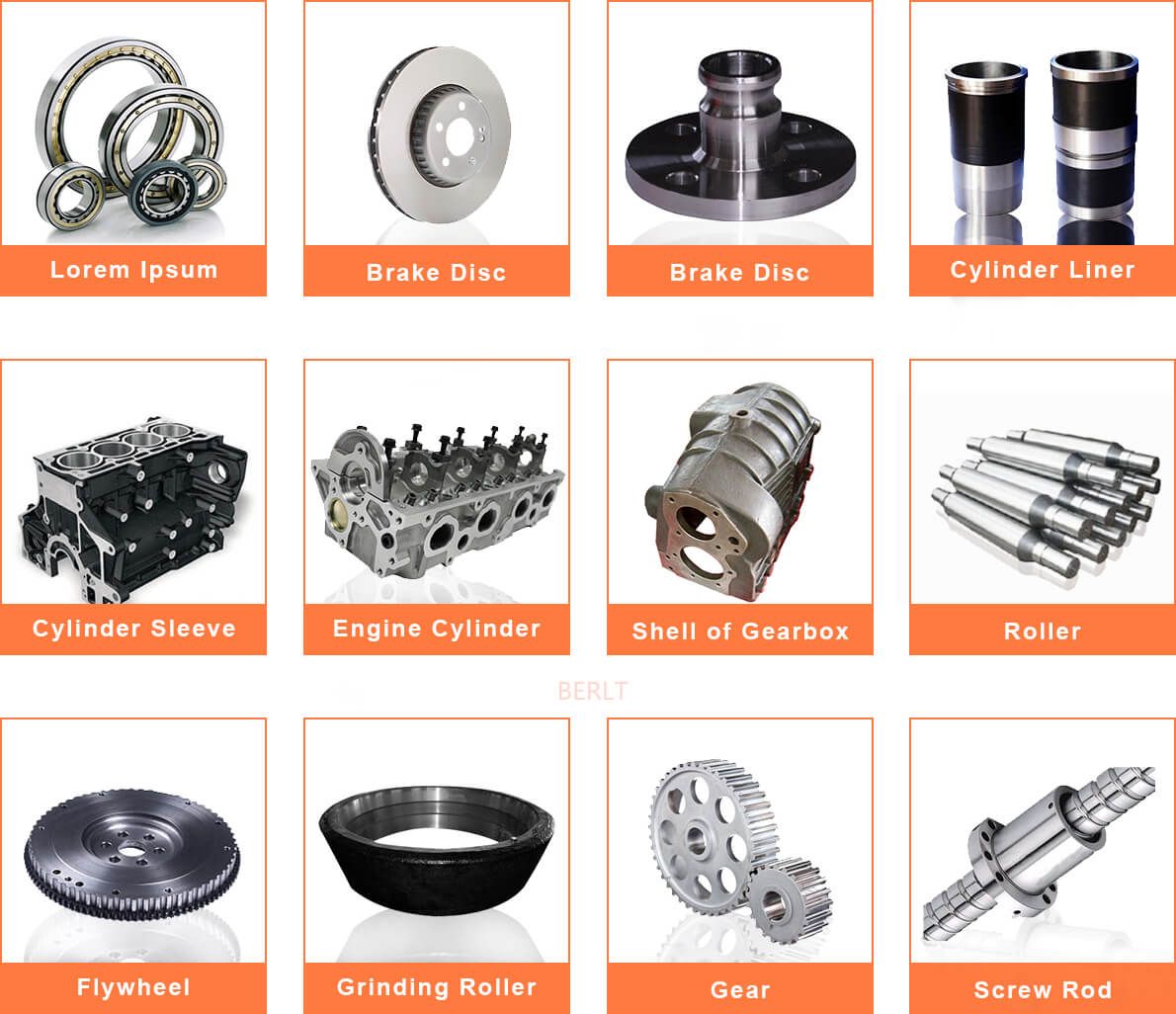

Application: Brake disc, compressor flange, brake drum, gears, valve, bearing, roller, grinding roller, engine cylinder head, cylinder sleeve, cylinder block, etc.
Introduction

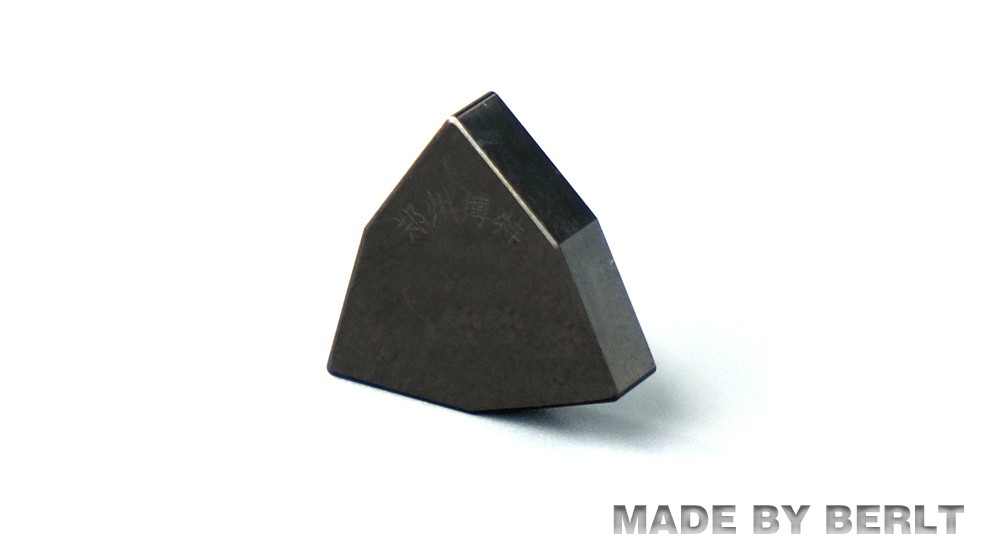

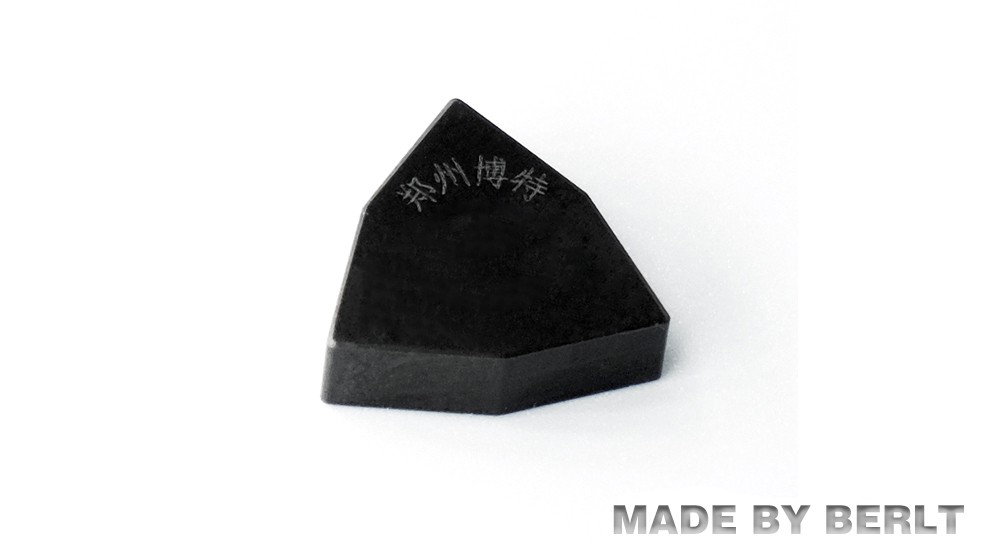

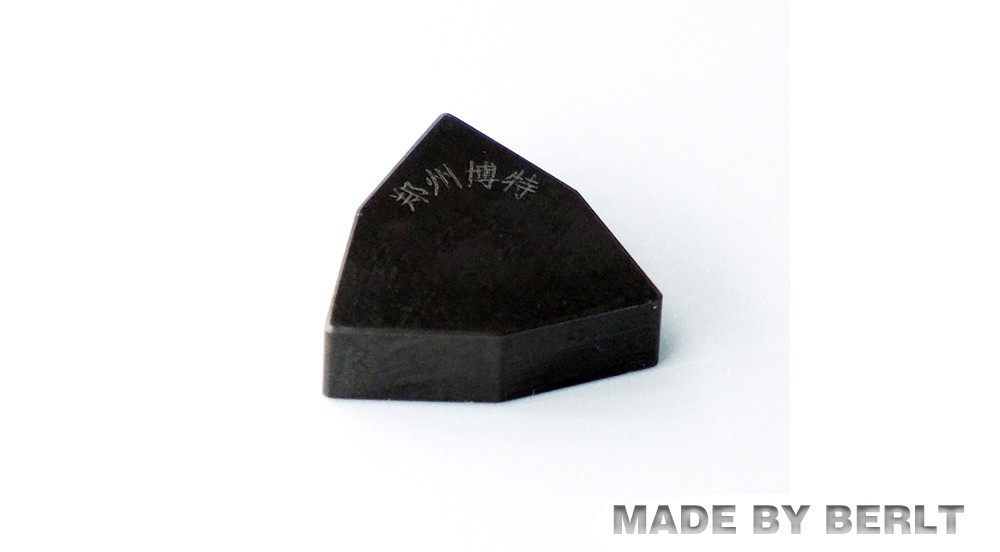

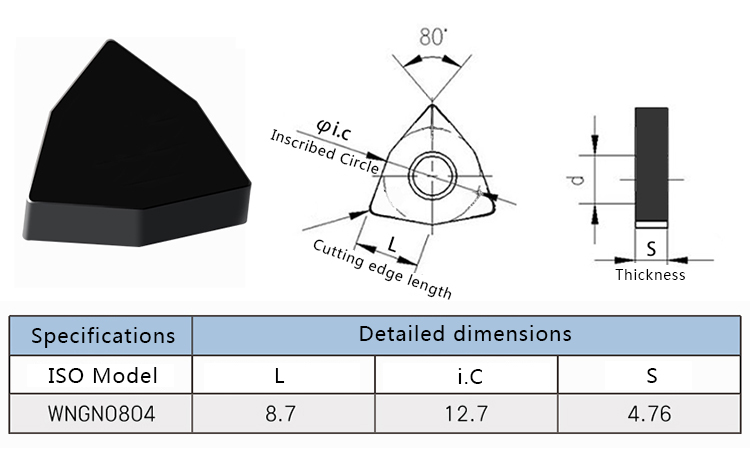

The shape of the WNGN series solid CBN insert is 80 °hexagon, which has higher hardness, wear resistance and heat resistance than cemented carbide and ceramic tools. Can use high cutting speed and high hardness (HS58-68) cold hard cast iron, the cutting effect is significantly higher than the use of other materials tools.
Cubic boron nitride inserts are most suitable for high-speed cutting of high-hardness hardened steel, high-temperature alloys, bearing steel, tool steel, high-speed steel and other materials. In the processing of hardened mold steel, high-speed cutting with CBN tools can play the role of milling instead of grinding, greatly reducing manual polishing work and greatly improving processing efficiency. CBN machine tool turning inserts for turning GCr15 hardened steel (hardness HRC60-65), Adopting negative chamfering, the blade strength is high, and the surface roughness can reach R0.8, turning to replace the grinding efficiency can be improved as much as 3 times.
Advantages
Characteristic | Advantages |
1.Widely application | Can meet finishing, semi-finishing and roughing. |
2.High fracture toughnes | Continuous cutting, general cutting, and interrupted cuttin |
3.High bending strength | Large cutting depth(<1/3 length of insert) |
4.High temperature resistanc | Can withstand high temperature of 1400 degree |
5.More cutting edges | Unlimited regrind, high blade utilization |
