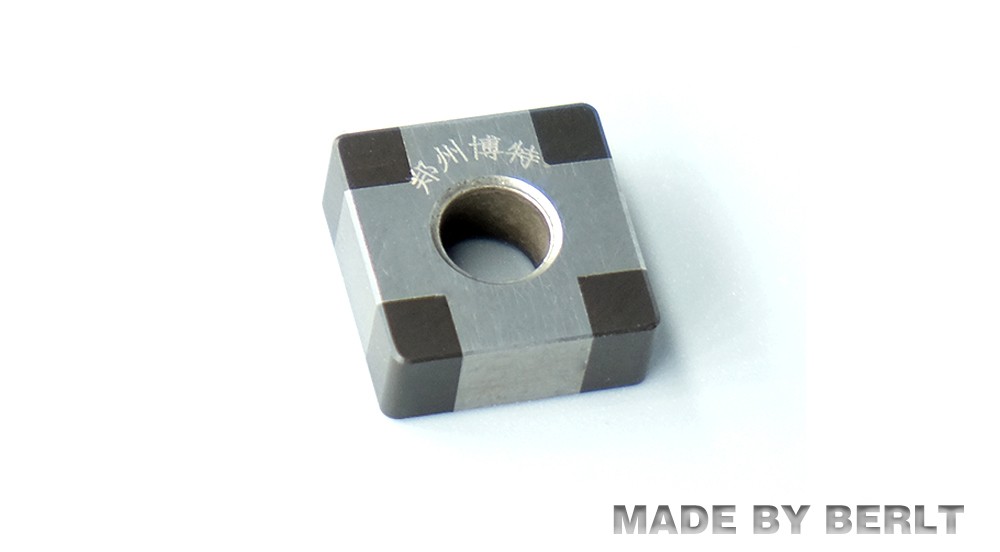

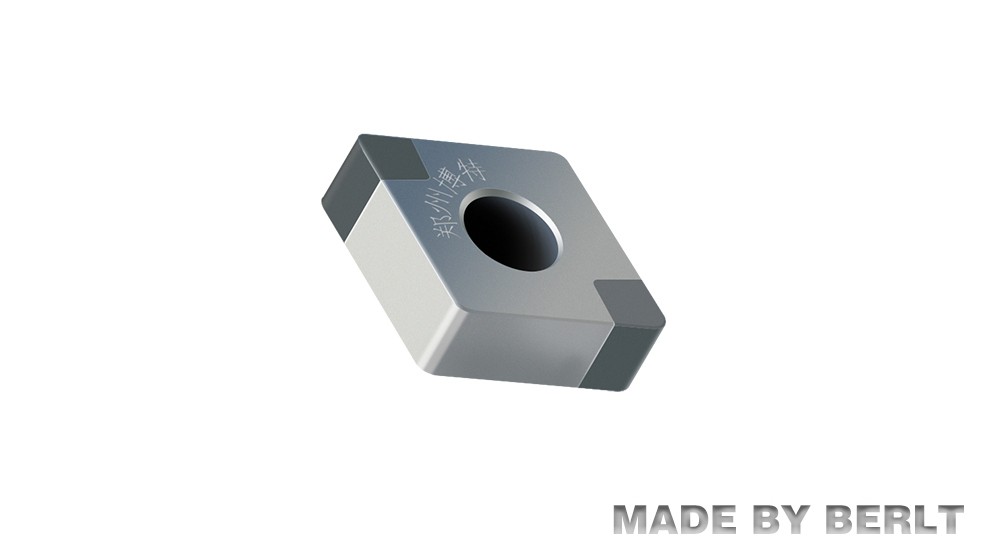

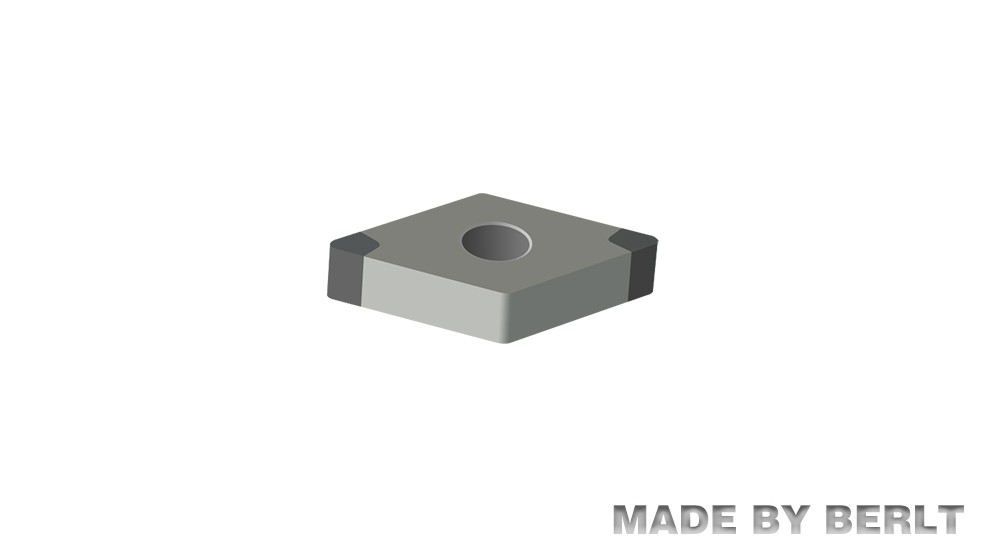

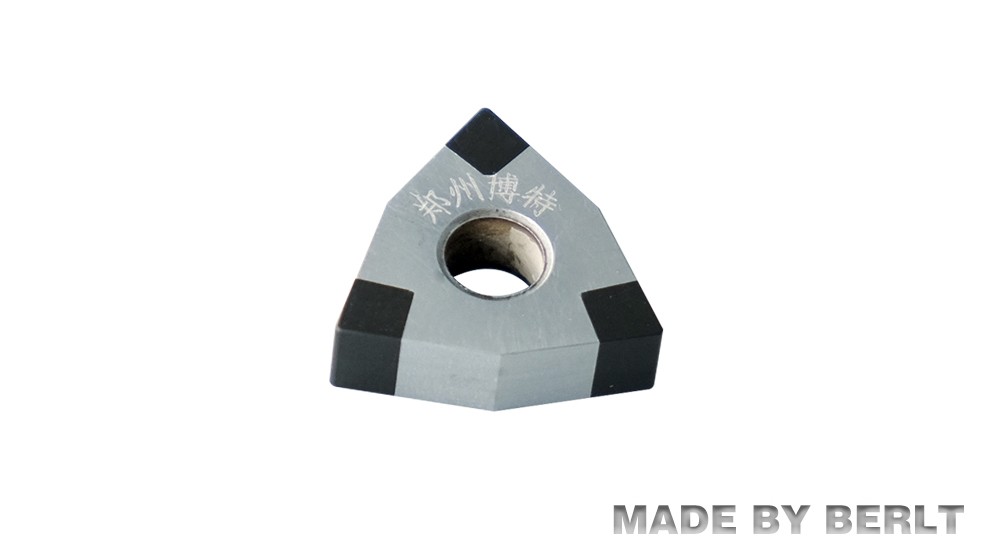

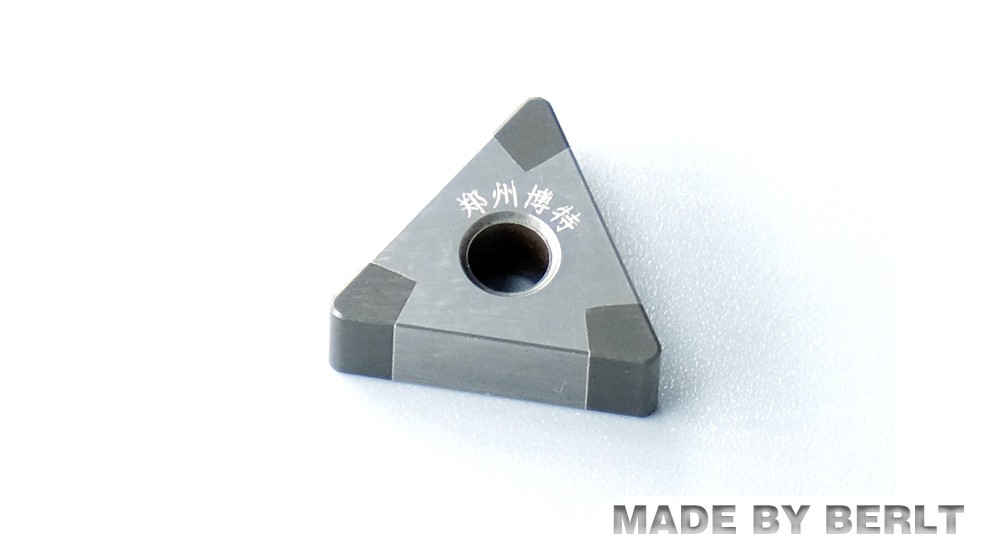

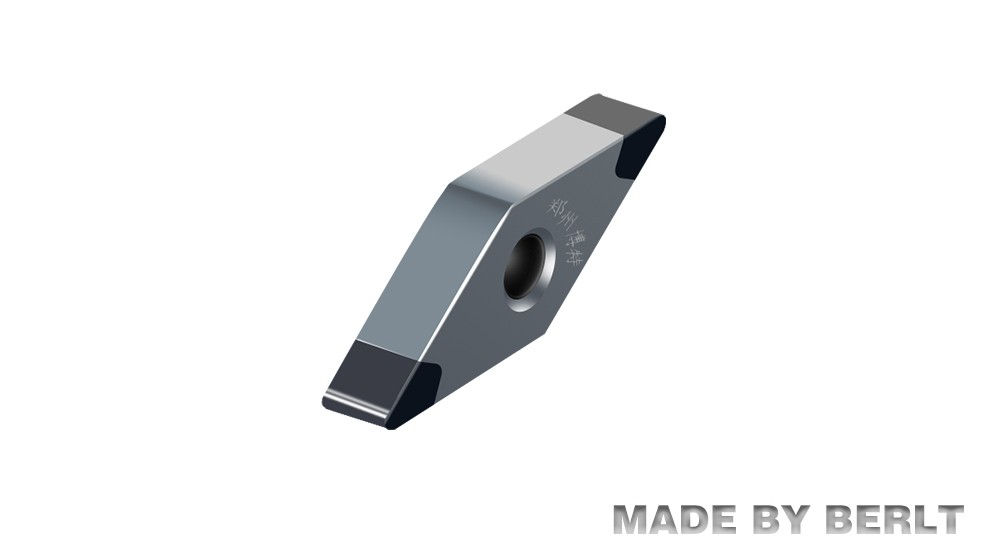

Brazing CBN Inserts
  • Brazing CBN Inserts
  • Brazing CBN Inserts
  • Brazing CBN Inserts
  • Brazing CBN Inserts
  • Brazing CBN Inserts
  • Brazing CBN Inserts
< >
Introduction

CBN Braze Inserts


Model: CNGA, DNGA, TNGA, VNGA, WNGA

Processed Material: Hardened Steel, high strength cast iron, powder metallurgy, gray cast iron

Processing Methods: Finishing, semi-finishing and roughing.

Application: Brake disc, compressor flange, brake drum, gears, valve, bearing, roller, grinding roller, engine cylinder head, cylinder sleeve, cylinder block, etc.


CBN braze inserts is integral sintered CBN small knife particles brazed on CNC alloy substrate in high vacuum and high temperature environment. The tip part is integral PCBN material with center hole positioning.


Contact us Email us
Features


Characteristic

Advantages

1.Widely application

  • Can meet finishing, semi-finishing and roughing

2.High welding strength

  • Welding temperature can reach more than 900 degrees,the cutting edge can withstand 750 degrees cutting temperature without falling off.

3.Good chipping resistance

  • The blade is integrally sintered material

4.Complete clamping arbo

  • Replace coated inserts and do not require changing holders

5.Center hole location

  • Location hole is designed according to customer’s need.

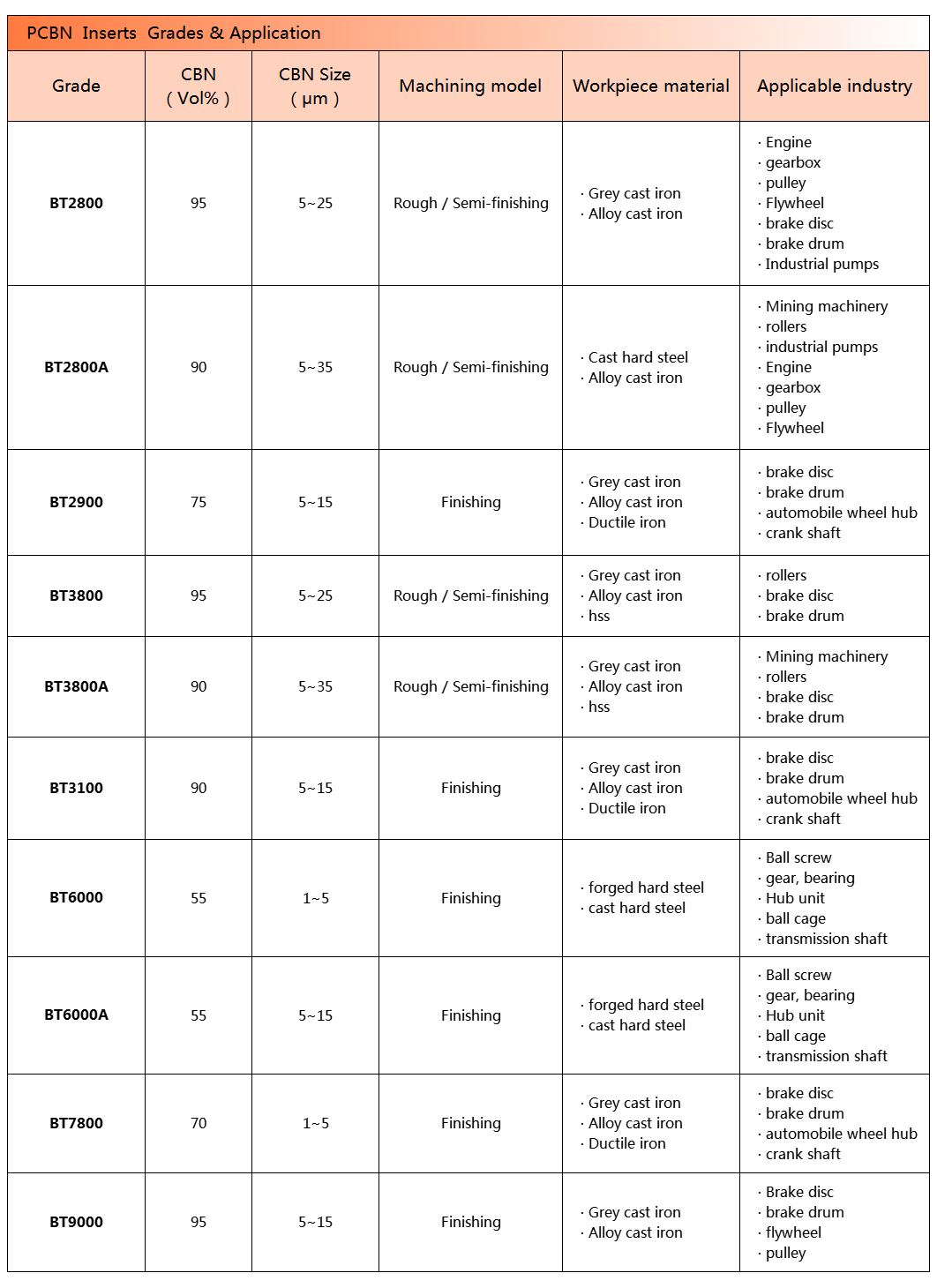

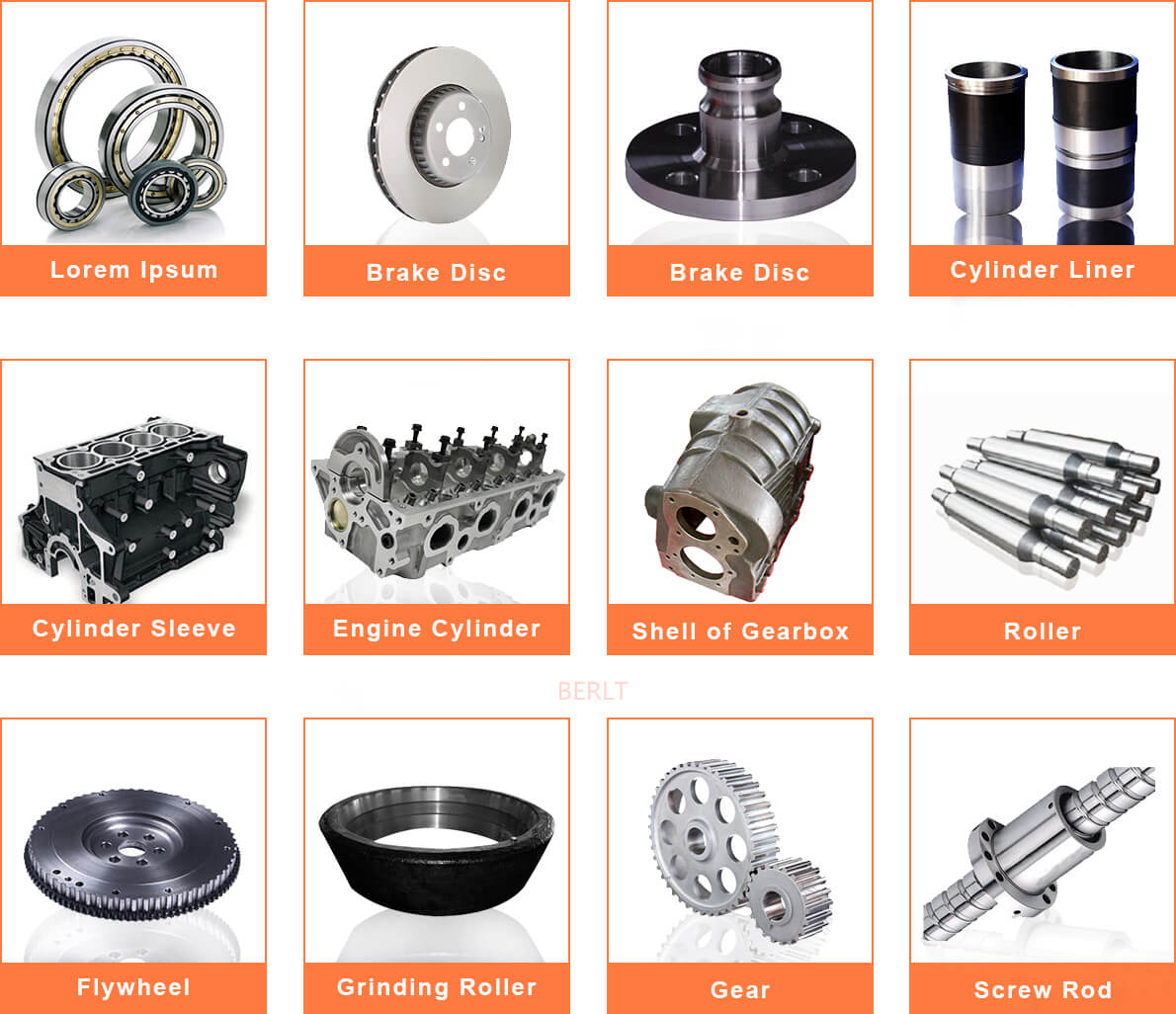

Application

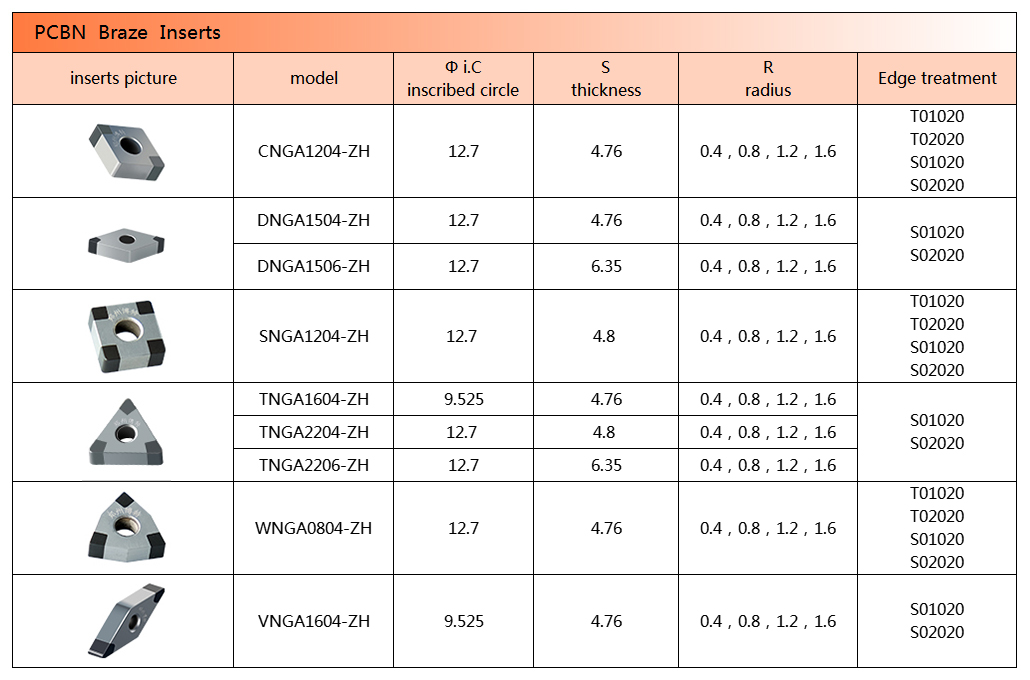

Parameters


Brazing CBN Inserts(图2)


FAQ

1. Q: Why customers choose us?

    A: Attractive price, fast delivery, patiently pre-sales consultation and perfect after-sales service. Customized technical solutions for you. Strict quality system to inspect, samples and bulk goods every time.



2. Q: How long is your delivery time?

    A: Generally it is 3-7 workdays if the goods are in stock. If customization is needed or out of stock, it takes 2-4 weeks.



3. Q: What is your terms of payment?

    A: 100% T/T in advance ,balance before shipment. Or 100% T/T in advance.



4. Q：What is the payment method?

    A: T/T



5. Q：Do you accept trial order?

    A：Yes we do. You can order with small amount to test.



6. Q: Can we get a discount if our ordered quantity is big enough?

    A: Yes, definitely right. We can offer you our best price and will give you a discount if your ordered quantity is big enough.
