Engine Cylinder Head Industry

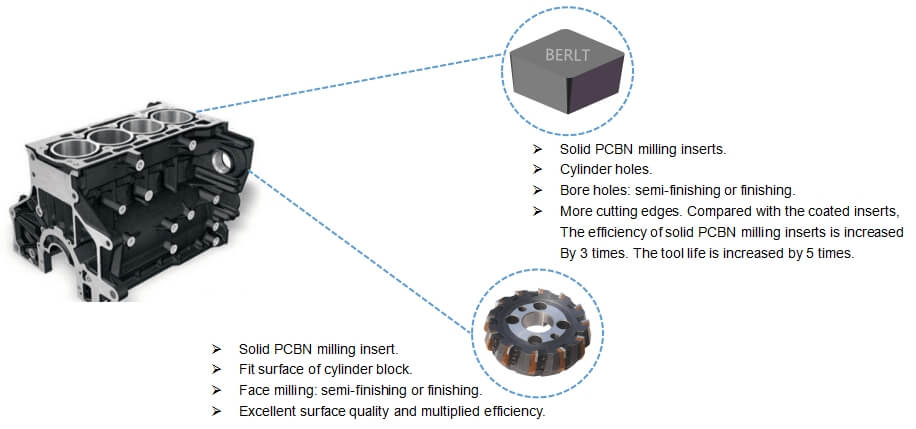

Cast Iron Engine Cylinder Block

Introduction:CBN milling/boring gray cast iron engine cylinder block, recommended NB super hard BTS-6500 brand and BT6000 brand, PCD cutter milling/boring die-casting aluminum engine cylinder block, recommended NB super hard CDW010 material.

Engine cylinder block as one of the five components of the engine, is the foundation of the engine installation of all parts, product quality, surface accuracy requirements are higher, to complete such a processing level, the requirements of the tool with high speed, high precision, high efficiency and other characteristics.

Engine cylinder body has two kinds of material at present, are gray cast iron and die-casting aluminum, the common cutting tool for carbide tool, CBN inserts and PCD tool, carbide blade is widely used, gray cast iron and die-cast aluminum can be processed, but due to the limitations of the carbide tool's own performance, can not achieve high-speed cutting.

The CBN and PCD tool belong to the super-hard material tool, among which the CBN inserts is used in the milling and boring process of the gray cast iron engine cylinder block, which can improve the production efficiency and reduce the production cost compared with the carbide tool. The PCD tool is used in the milling and boring process of die-casting aluminum engine cylinder block to obtain higher surface finish and dimensional accuracy.

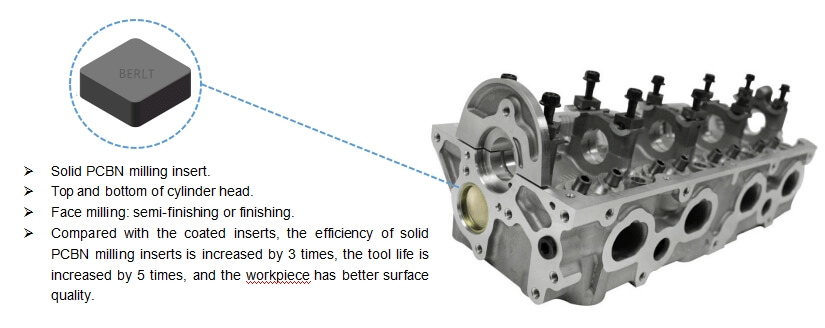

Cast Iron Engine Cylinder Head

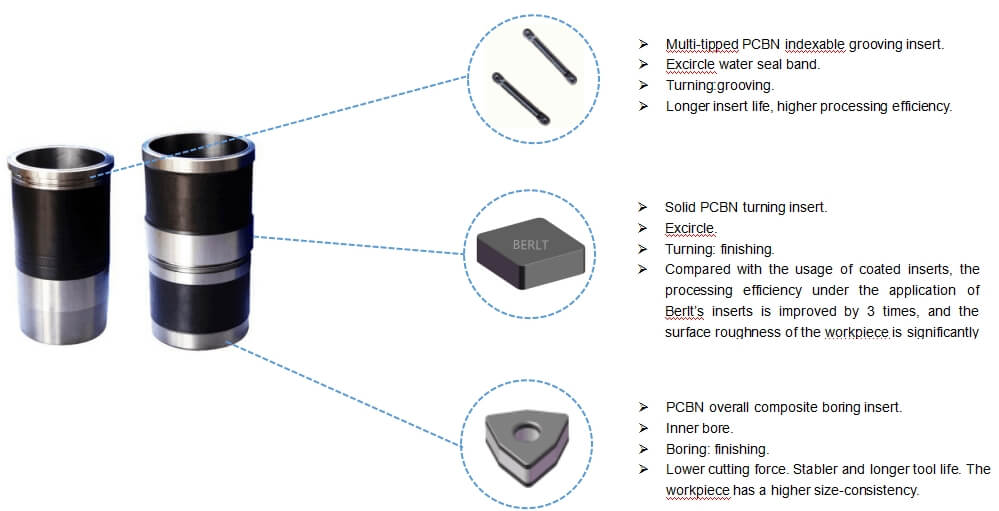

Cast Iron Cylinder Liner

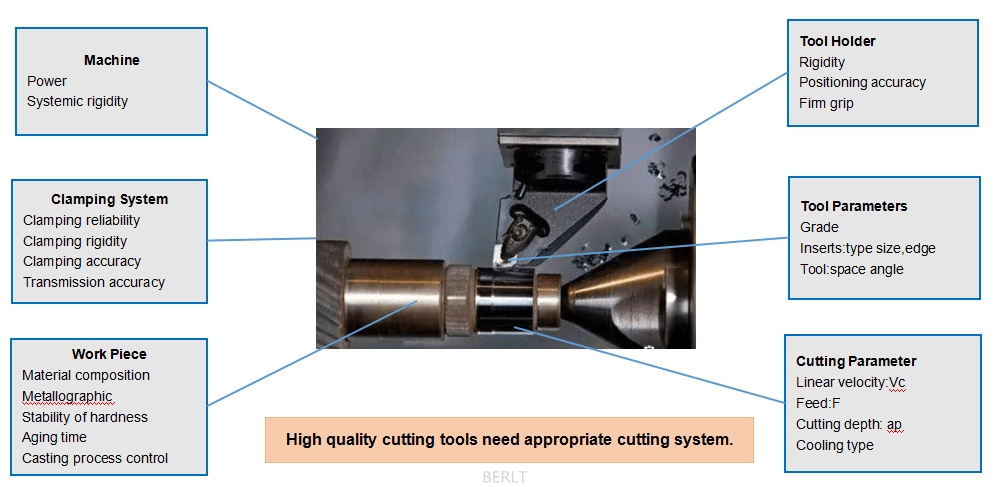

Factors that affect machining effect of PCBN insert
