Bearing Making Industry

Hard turning bearing case

Berlt tools provide hard turning, hard boring, grooving and other CBN tools for the field of hardened steel, and have formed a complete set of hard cutting tool solutions ,from rough machining → semi-finishing → finishing → super finishing For users to choose, the following is the case of Berlt CBN tool hard  turning car bearings.

Case Enterprise: A domestic bearing factory

Machine tool: Double-column vertical lathe C545

PCBN Inbseerts for Bearing Inner And Outer Ring

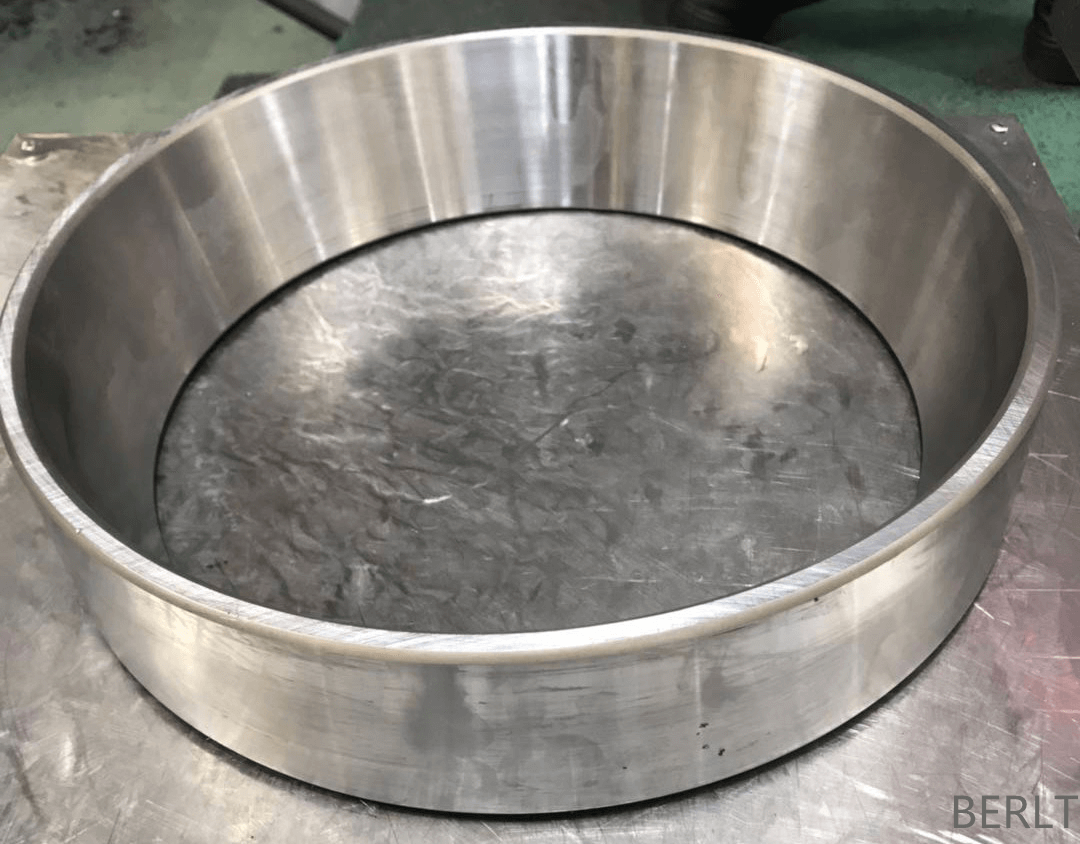

1-20042Q43QGS.pngWorkpiece name: bearing inner and outer ring
Workpiece material: bearing steel (hardness HRC58-62)
Insert model:BTS2800 SNGN160816
Cutting parameters :Vc120m/min         Fr0.4mm/r     ap0.5mm
Processing method: dry cutting
Tool materialTool lifeFinal failure form
Berlt BTS2800 material6 pieces normal abrasion
CBN insert of a certain brand4 piecesRupture
Note: The inner and outer rings of hard car bearings use solid CBN inserts. Compared with other brands of CBN tools, the tool life of Berlt tools is increased by 50%, which greatly improves the cutting efficiency.

PCBN Inserts for Bearing Raceway

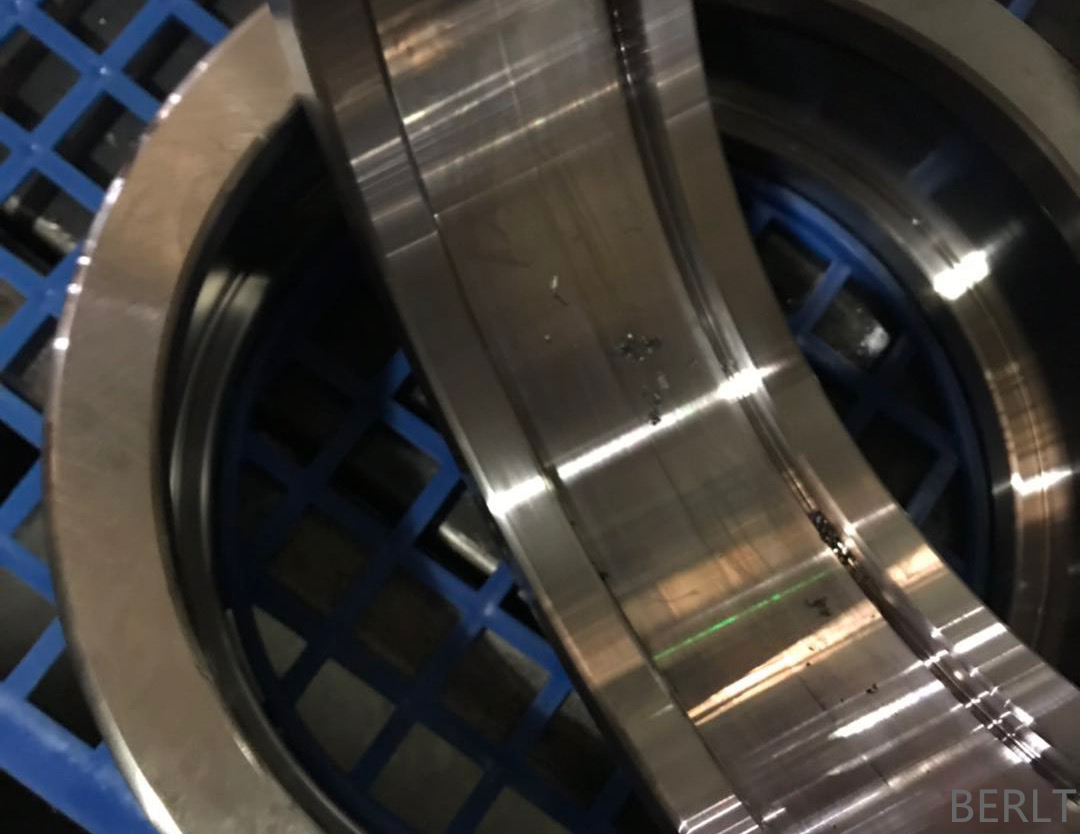

1-20042Q43214K5.pngWorkpiece name: bearing raceway
Workpiece material: 40GrMoTi (hardness HRC58-62)
Insert model:BTS2800 RNMN0904
Cutting parameters:Vc=130m/min,Fr=0.25mm/r,ap=0.5mm
Processing method: dry cutting
Tool materialTool lifeFinal failure form
Berlt BTS2800 material10 piecesnormal abrasion
A foreign CBN insert10 piecesnormal abrasion
Note: Bearing raceway processing uses solid CBN inserts. Compared with a foreign CBN tool, Berlt tools have the same life, good tool consistency and stability, and high cost performance.

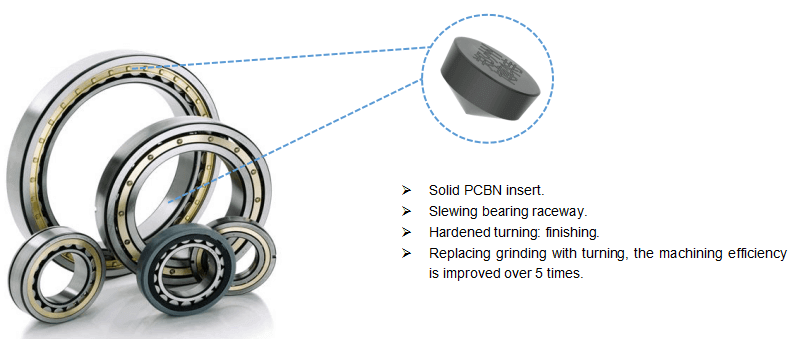

PCBN Inserts for Bearing Making Industry

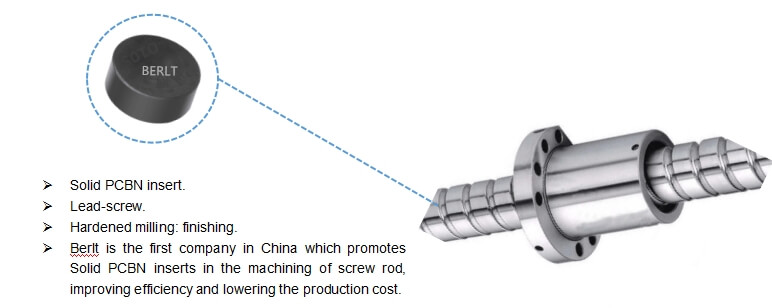

PCBN Inserts for Screw Rod

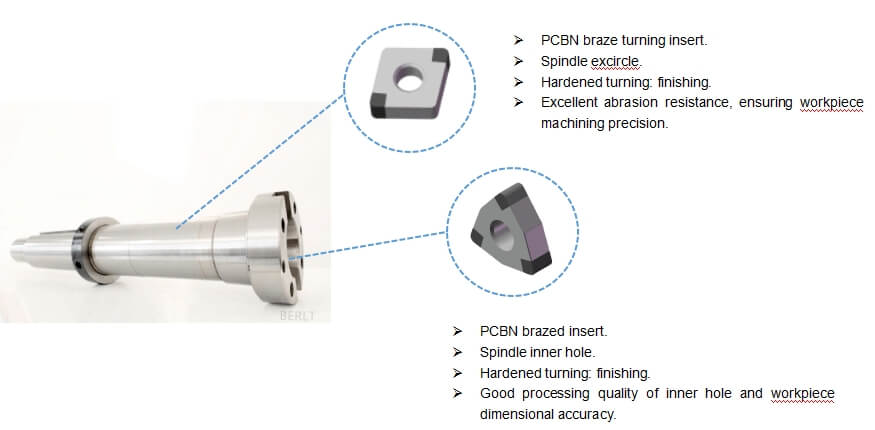

PCBN Inserts for Machine Tool Spindle

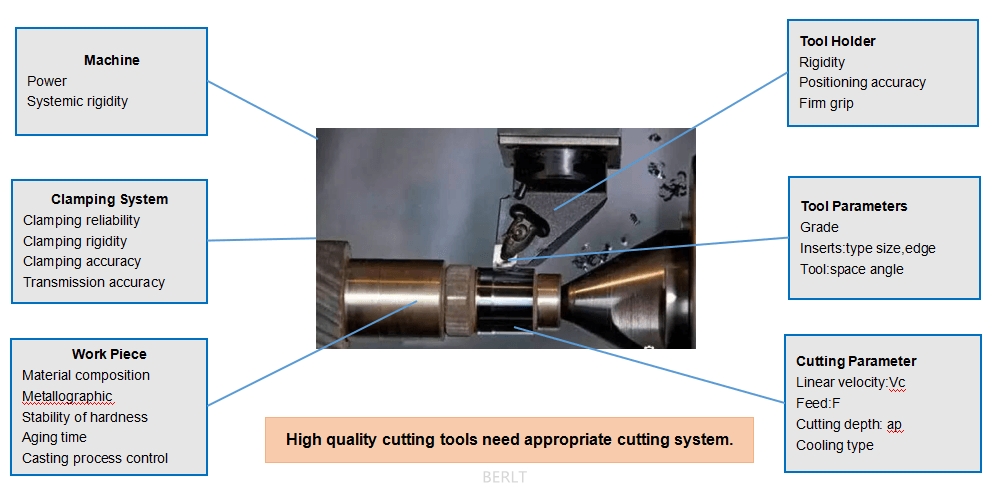

Factors affecting the cutting performance of PCBN inserts
