SNGN Series Solid PCBN Inserts
Processing Material: Hardened Steel, high strength cast iron,Powder Metallurgy,Gray Cast Iron.
Processing Methods: Finishing, semi-finishing and roughing.

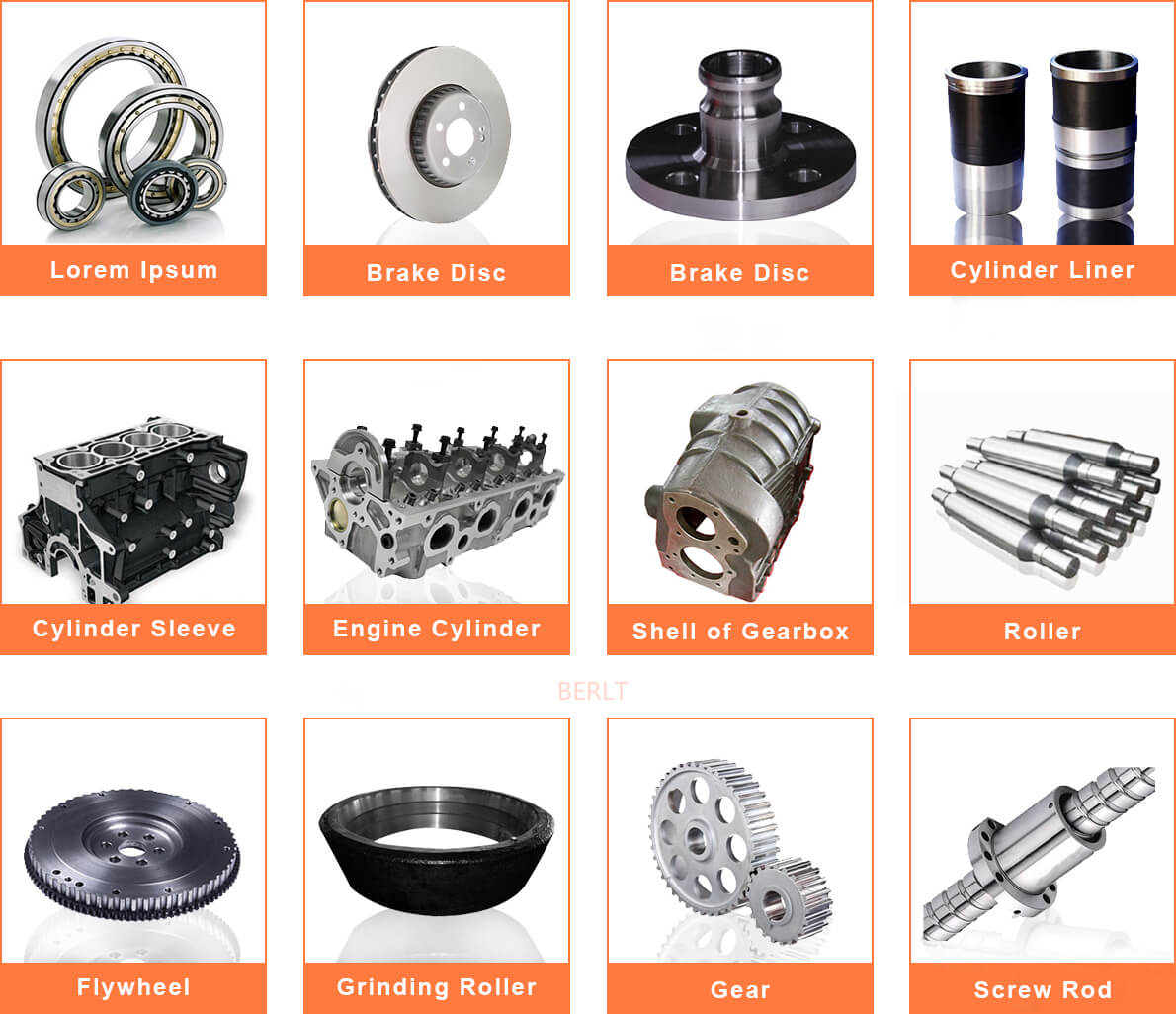

Application: Brake disc, compressor flange, brake drum, gears, valve, bearing, roller, grinding roller, engine cylinder head, cylinder sleeve, cylinder block, etc.
Introduction

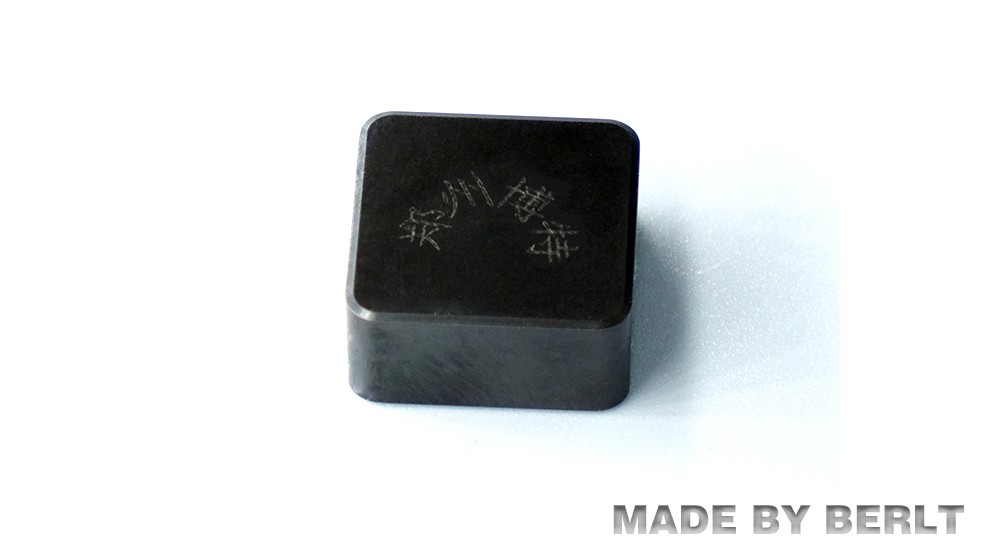

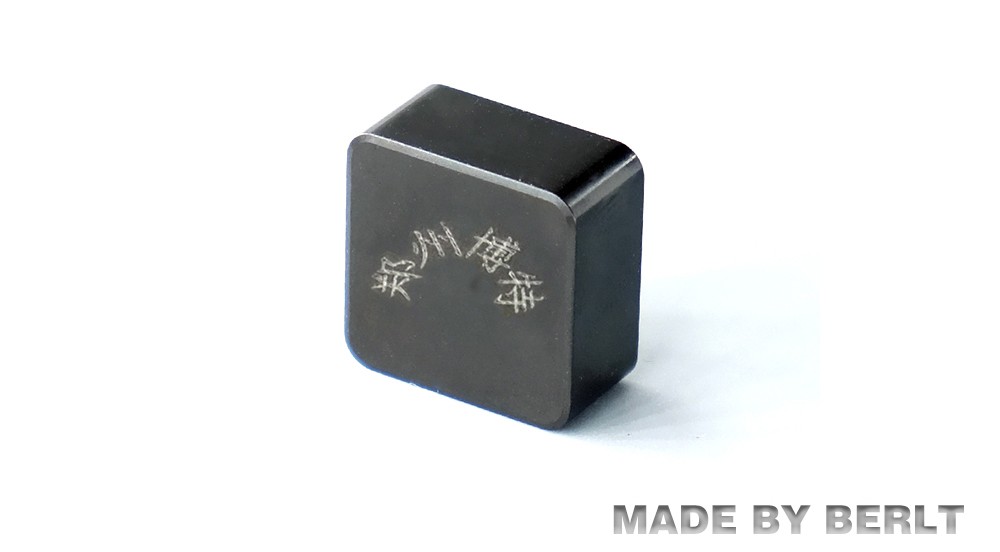

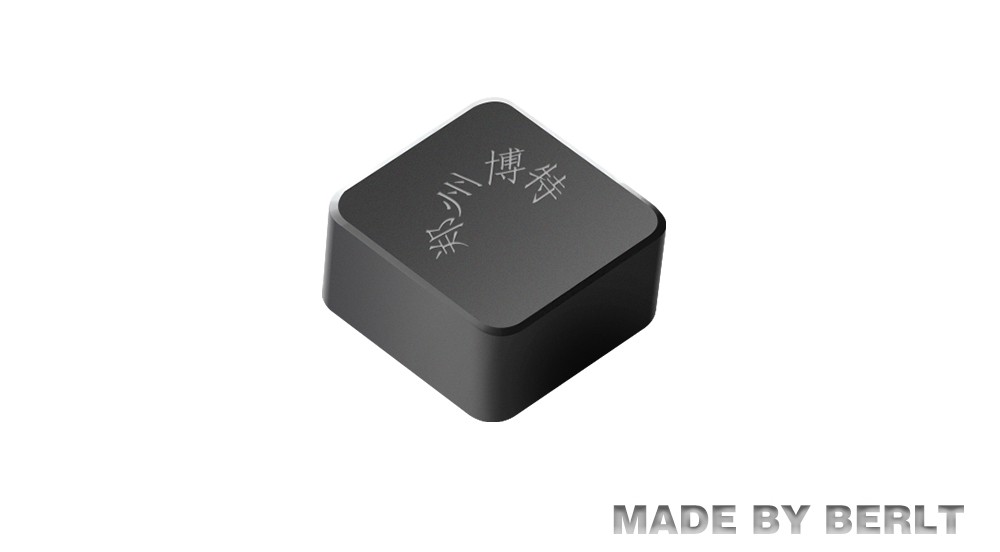

The SN series solid CBN inserts (referred to as CBN blades) are square in shape, and there are many models and specifications. Under the high temperature and high pressure of the six-sided top hydraulic press, it is sintered and synthesized, which has strong wear resistance, heat resistance and chemical stability. It can efficiently turn cast iron brake discs, cast iron brake drums, boron cast iron cylinder liners, cast iron clutch pressure discs and other automotive parts to realizing turning instead of grinding. SN series CBN inserts are matched with 45 °, 75 °, 83 ° and other external turning tool holders. There are three types of R, L and N.
Shafts and gears with HRC55-65 hardened steel as the main material are difficult to machine. When turning such parts, Zhengzhou Berlt solid CBN inserts can be used, not only eliminating the grinding process, The turning instead of grinding cutting process also improves productivity, shortens processing time, and reduces production costs. CBN inserts are indexable multi-blade inserts, allowing multiple processes to be performed in one clamping, reducing the number of tool changes. From the perspective of environmental protection, Solid CBN inserts are most suitable for high-speed dry cutting without coolant, which reduces environmental pollution. Chips can be recycled well and it is easier and more convenient to handle.
Characteristic | Advantages |
1.Widely application |
|
2.High fracture toughnes |
|
3.High bending strength |
|
4.High temperature resistanc |
|
5.More cutting edges |
|
